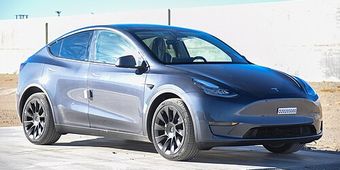

Tesla Model Y 1st generation (2020–2024) — Key Programming Reference
- Difficulty
- expert
Key fobs & transponder keys (2 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

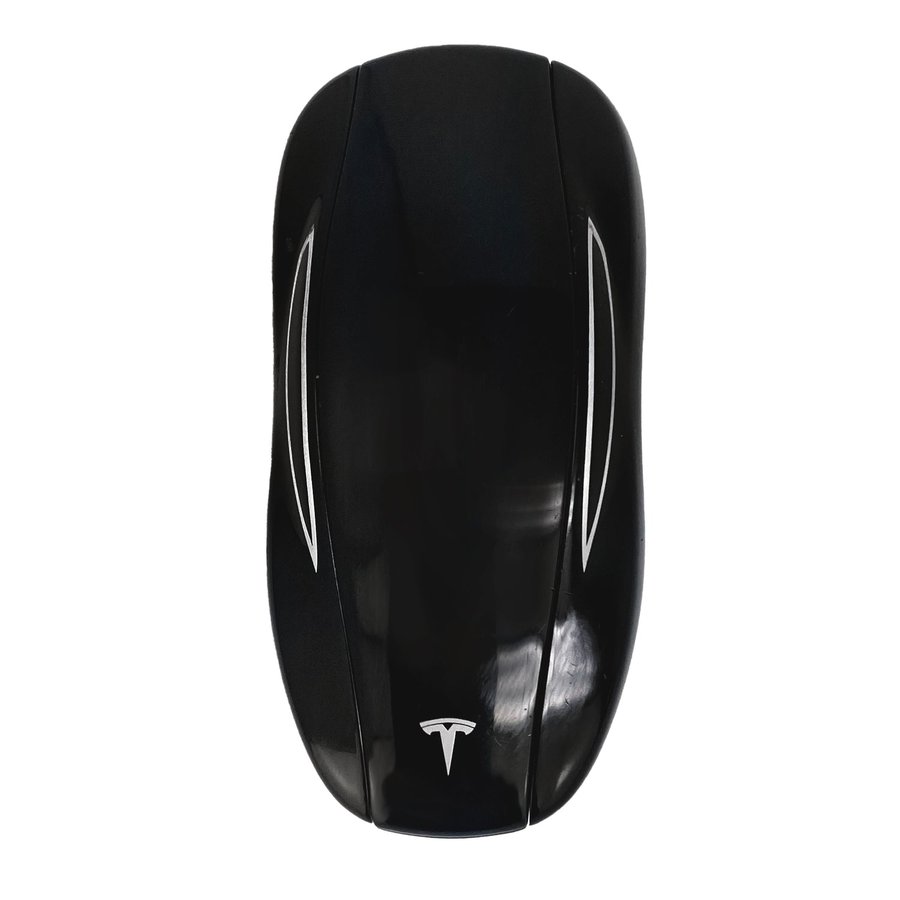

| 2.402-2.48 GHz BLE · 2AEIM-1133148 | 2020–2024 (all markets, optional accessory fob) | 2AEIM-1133148 | 1133148-00-A | none | 2.402–2.48 GHz BLE | CR2032 | n/a |
| 13.56 MHz NFC · 1104284-01-J | 2020–2024 (all markets, standard included key) | n/a | 1104284-01-J / 1104284-00-J | passive 13.56 MHz NFC (ISO 14443) | 13.56 MHz NFC (passive) | n/a | n/a |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: Tesla account auth (no PIN).
- Online / server access: required — None.
- On-board (no tool) sequence: possible for this case.
- On site: engine ready · Vehicle awake / READY mode · n/a.
- Bring: Tesla account access (owner). Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Model Y 1, 2020-2024 pre-Juniper) spans Tesla's BLE phone-as-key + NFC card key system — owner-managed via touchscreen, NO locksmith tool involvement possible. Same pairing procedure as Model 3 (B-pillar reader + center console). For all-keys-lost, owner must contact Tesla Service with proof of ownership — no aftermarket AKL path exists.
- Existing authenticated key (card / fob / phone) required to add new key.
- If all keys lost: contact Tesla Service (no locksmith path).
- Tesla AKL (all keys lost) is NOT a locksmith service. Refer customer to Tesla Service.
- Tesla Service can provision new key cards to the account via Tesla Mobile Service or service center visit. Customer must provide proof of ownership.
- No aftermarket tool supports Tesla key provisioning.
Lockout
⚠️ Do NOT use air wedge (flush handles). Long reach through top of window or call Tesla.
30 verified sources · Last verified: 2026-08-05
