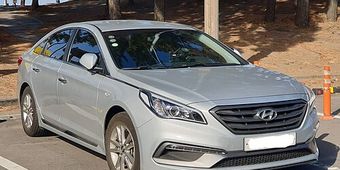

Hyundai Sonata 7th (LF) (2015–2019) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY20R
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

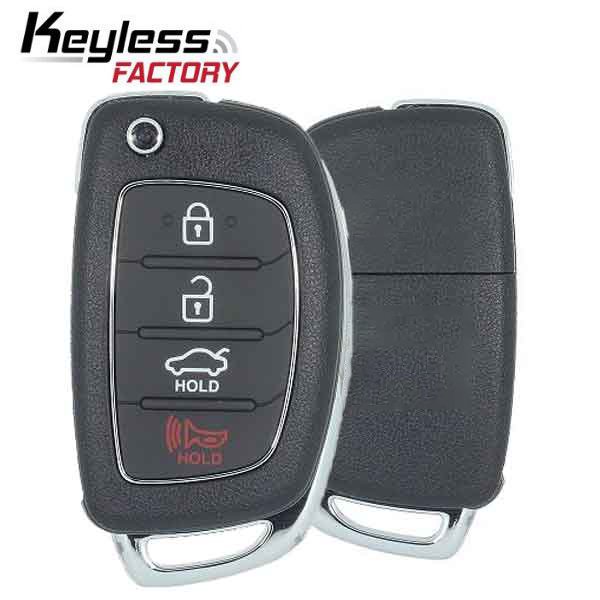

| 433.92 MHz · TQ8-RKE-4F16 | 2015–2017 non-push-start trims | TQ8-RKE-4F16 | 95430-C1010 | none | 433.92 MHz | CR2032 | KK10-P (HY22 / TOY48) |
| 433.92 MHz · TQ8-RKE-4F25 | 2017–2019 non-push-start trims | TQ8-RKE-4F25 | 95430-C1210 / 95430-C2210 | none | 433.92 MHz | CR2032 | KK10-P |
| 433.92 MHz · CQOFD00120 | 2015–2019 push-start Limited/Sport/Eco trims | CQOFD00120 | 95440-C1001 / 95440-C1500 | Texas Instruments DST-AES (Hitag-AES / ID 8A) | 433.92 MHz | CR2032 | HY22 (emergency insert; Ilco LXP90 blank — OEM 81996-3Z020 / 81999-2S040) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Sonata LF, 2015-2019) spans the chip transition era — pre-facelift (2015-2017) PCF7952 ID46, facelift (2018-2019) often HITAG-AES. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- Sonata LF non-push-start trims use non-transponder flip remote — no IMMO programming needed. Verify trim has push-button start before scheduling job.
- All existing smart key registrations will be permanently erased. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
- Non-push-start Sonata LF trims: key cutting only — no IMMO programming needed.
Lockout
Door pick / decode: Lishi HY20R (CCW).
68 verified sources · Last verified: 2026-08-08
