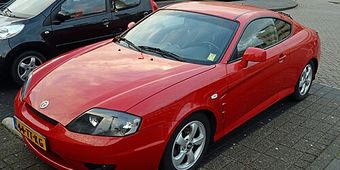

Hyundai Tiburon 2nd (GK) (2003–2008) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY16
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · LXP-RK225 | 2003–2008 NA — trims with keyless entry option | LXP-RK225 | 95440-2C000 / 95440-2C405 / 95440-2C410 | none | 315 MHz | CR2032 | n/a |
| transponder · 81996-25010 | 2003–2008 NA / 2002–2009 Europe & Korea — all trims | n/a | 81996-25010 | Philips ID46 (PCF7936) | n/a | n/a | HYN6 |
| 433 MHz · 95440-2C505 | 2007–2008 facelift Coupe SIII / Tuscani — keyless-equipped trims | n/a | 95440-2C505 / 95440-2C510 | none | 433 MHz | CR2032 | n/a |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Tiburon GK sport coupe, 2003-2008) spans the Texas 4D60 era — pre-2009 used 4D60 across the lineup. Tiburon GK is the 2nd-gen sport coupe, discontinued 2008. IMMO key registration ALWAYS erases ALL previously registered keys.
- Pre-2007 model: if Automatic selection fails on Autel, use Manual selection → America → TIBURON → year range.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY16 (CW).
23 verified sources · Last verified: 2026-08-10
