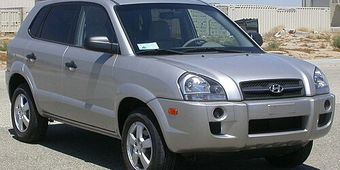

Hyundai Tucson 1st (JM) (2005–2009) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY16
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

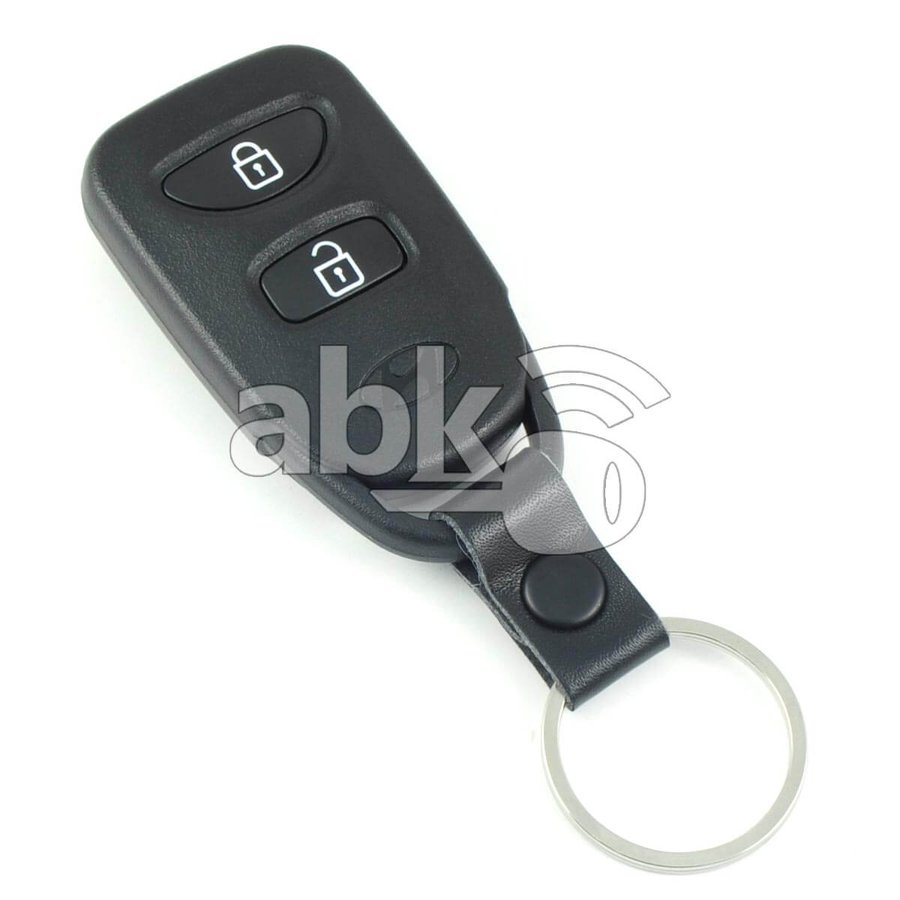

| 313.85 MHz · OSLOKA-320T | 2005–2009 NA — trims with keyless entry option | OSLOKA-320T | 95430-2E200 | none | 313.85 MHz | CR2032 | n/a |
| transponder · PN 81996-2E020 | 2005–2009 NA — all trims | n/a | 81996-2E020 | Philips ID46 (PCF7936) | n/a | n/a | HYN6 |
| 433.92 MHz · PN 95430-2E100 | 2004-04 to 2008-05 export build (EU/UK + RoW spec) | n/a | 95430-2E100 | none | 433.92 MHz | CR2032 | HYN6 |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Tucson JM 1st gen, 2005-2009) spans the Texas 4D60 era — pre-2010 Tucson used 4D60 across the lineup. IMMO key registration ALWAYS erases ALL previously registered keys. Bring minimum 2 new 4D60-prepared keys before procedure.
- Pre-2007 model: if Automatic selection fails on Autel, use Manual selection → America → TUCSON → year range.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY16 (CW).
36 verified sources · Last verified: 2026-08-09
