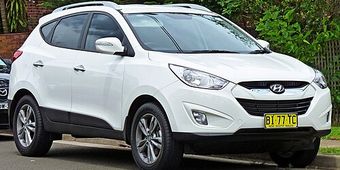

Hyundai Tucson 2nd (LM) (2010–2015) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY15
Key fobs & transponder keys (5 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

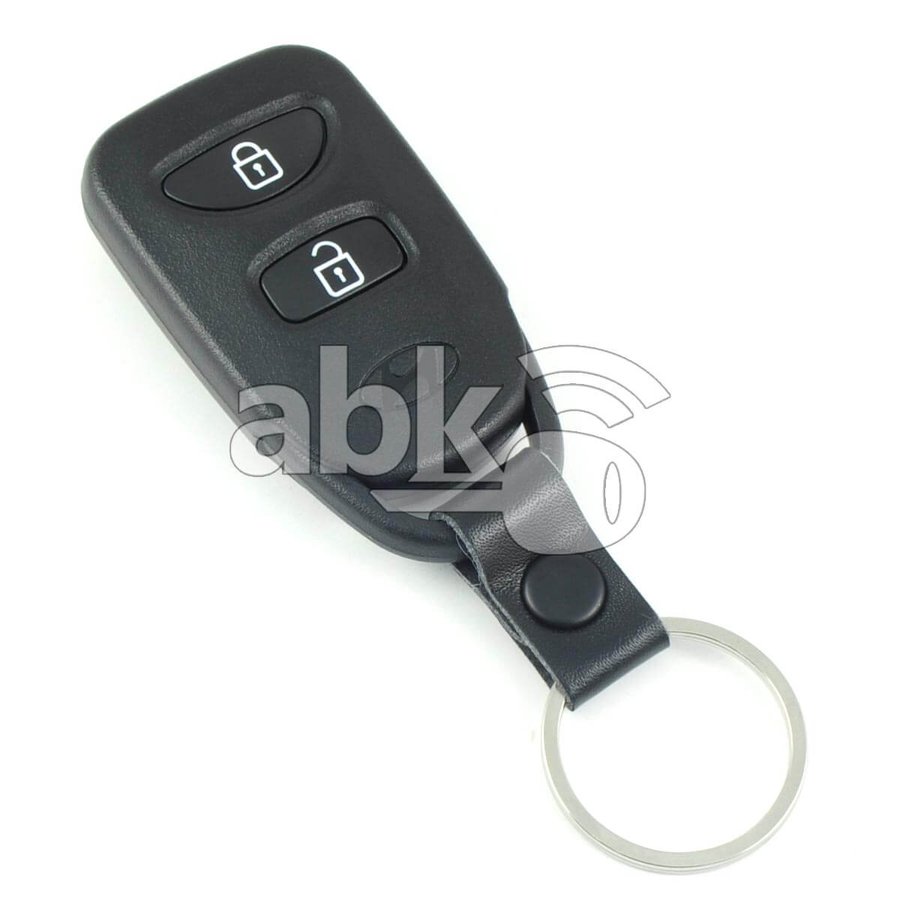

| 313.85 MHz · OSLOKA-850T | 2010–2015 NA — non-push-start trims (GLS / SE) | OSLOKA-850T | 95430-2S200 | none | 313.85 MHz | CR2032 | n/a |
| 433.92 MHz · TQ8-FOB-4F03 | 2014–2015 NA — Limited (push-button start) | TQ8-FOB-4F03 | 95440-2S600 | Philips ID46 (PCF7945A / PCF7953A, HITAG-2) | 433.92 MHz | CR2032 | HY18 |
| transponder · 81996-3S000 PCF7936 ID46 | 2010–2015 NA — non-push-start trims (paired with V0 RKE fob) | n/a | 81996-3S010 | Philips ID46 (PCF7936, Crypto) | n/a | n/a | HYN14R 8-cut (Silca HY18 / Ilco HY15 profile) |
| 433.92 MHz · 95430-2S700 (CE0682, no US FCC) | 2009–2014 — Europe / Middle East ix35 and export Tucson | n/a | 95430-2S700 / 95430-2S701 | Philips ID46 (PCF7936, HITAG-2) | 433.92 MHz | CR2032 | HYN14R |
| 433.92 MHz · 95440-2S200 SVI-MDFEU03 (KCC, no US FCC) | 2009–2015 — Europe / Middle East / global ix35 push-start | n/a | 95440-2S200 / 95440-2S610 | Philips ID46 (PCF7952A / PCF7945A, HITAG-2) | 433.92 MHz | CR2032 | HYN14R |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Tucson LM, 2010-2015) spans the 4D60 → PCF7936 ID46 chip transition — 2010-2013 typically 4D60, 2014-2015 typically PCF7936 ID46. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY15 (CW).
67 verified sources · Last verified: 2026-08-10
