Hyundai Veloster 1st (FS) (2012–2017) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY20
Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

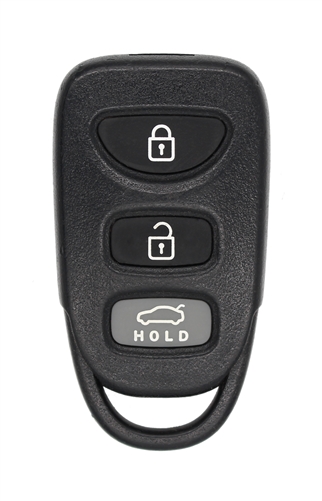

| 315 MHz · NYOSEKS-TF10ATX | 2012–2017 NA — all trims | NYOSEKS-TF10ATX | 95430-2V100 | none | 315 MHz | CR2032 | n/a |
| transponder · 81996-1R000 | 2012–2017 NA — required for engine start (non-smart-key trims) | n/a | 81996-1R000 | Philips ID46 (PCF7936) | n/a | n/a | HY18 |
| 315 MHz · SY5HMFNA04 | 2012–2017 NA — push-button-start trims (incl. Turbo) | SY5HMFNA04 | 95440-2V100 | Philips PCF7952 (ID46 / HITAG-2) | 315 MHz | CR2032 | HY18 emergency insert (ILCO HY18P) |
| 433 MHz · 95440-1R510 (KCC SVI-MDFEU03) | 2012–2017 — Europe / Australia / Middle East / Korea push-start trims | n/a | 95440-1R510 | Philips PCF7952A (ID46 / HITAG-2) | 433 MHz | CR2032 | HY18 emergency insert |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Veloster FS, 2012-2017) spans the sport trim line — 4D60 → PCF7936 ID46 chip transition. 2012-2014 typically 4D60, 2015-2017 typically PCF7936 ID46. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY20 (CW).
73 verified sources · Last verified: 2026-08-08
