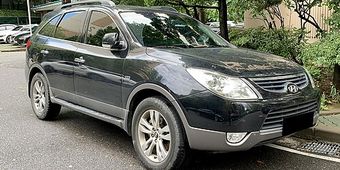

Hyundai Veracruz 1st (EN) (2007–2012) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY15
Key fobs & transponder keys (4 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|
| 315 MHz · SY55WY8212 | 2007–2012 NA — base/non-proximity trims (GLS, SE) | SY55WY8212 | 95430-3J500 | none | 315 MHz | CR2032 | n/a |
| 315 MHz · SY5SVISMKFNA04 | 2007–2012 NA — Limited push-start trims | SY5SVISMKFNA04 | 95440-3J600 | Philips ID46 (PCF7952A / Hitag2) | 315 MHz | CR2032 | HYN14R / HY15 (Ilco HY15-P, JMA HY-11DP1, Keyline HY14SP, Silca HYN14RT14) |
| transponder · 81996-2B010 | 2007–2012 NA — for non-smart-key trims | n/a | 81996-2B010 | Philips ID46 (PCF7936) | n/a | n/a | HYN14R / HY15 (Silca HYN14RT14, Ilco HY15-P, JMA HY-11DP1, Keyline HY14SP) |
| 433 MHz · SVI-SMKFEU04 (Korea KCC) | 2007–2011 export (Europe/Russia as ix55), 2007–2015 Korea, plus China / Middle East / Morocco / South America | n/a | 95440-3J501 | Philips ID46 (PCF7952A) | 433.92 MHz | CR2032 | HYN14R / HY15 (Ilco HY15-P, JMA HY-11DP1, Keyline HY14SP, Silca HYN14RT14) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Veracruz EN, 2007-2012) spans the PCF7936 ID46 era — Veracruz launched with ID46 from 2007. IMMO key registration ALWAYS erases ALL previously registered keys. Smart key trim uses PCF7945 — verify exact chip by reading existing key before ordering blanks.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY15 (CW).
55 verified sources · Last verified: 2026-08-10
