Hyundai Tucson 3rd (TL) (2016–2021) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY20R
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

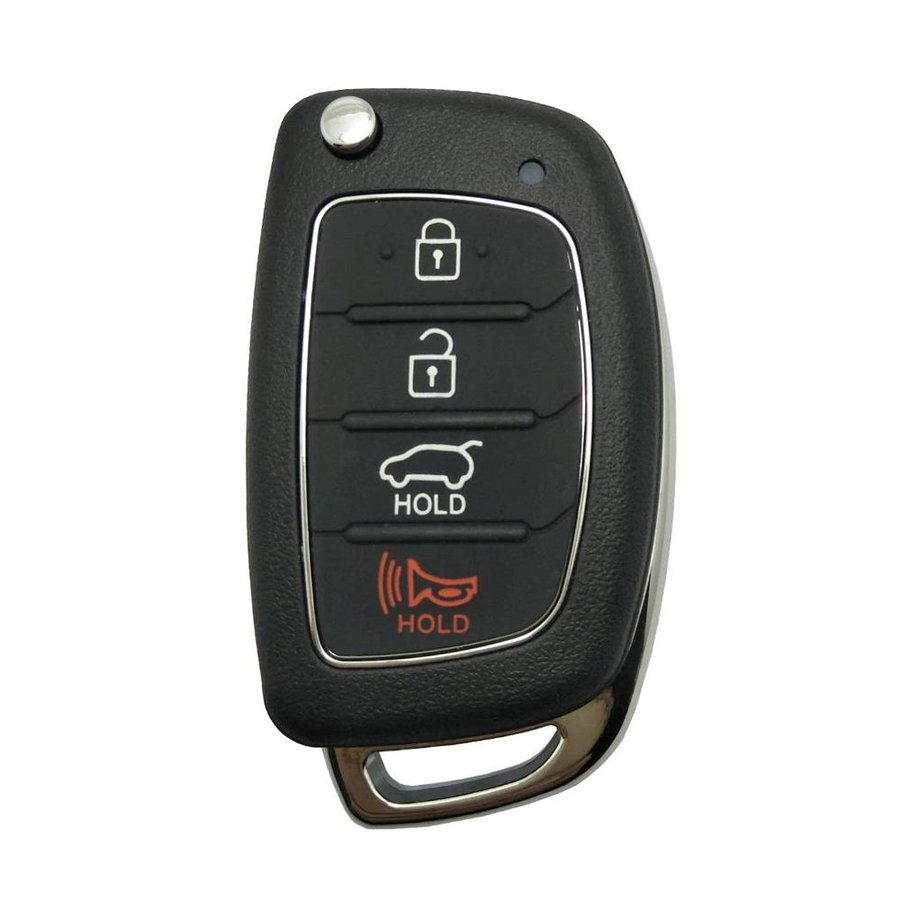

| 433.92 MHz · TQ8-RKE-4F25 | 2016–2021 — non-push-start trims (SE, SEL) | TQ8-RKE-4F25 | 95430-D3010 | none | 433.92 MHz | CR2032 | KK10 / FKB-HY-014 |
| 433.92 MHz · TQ8-FOB-4F07 | 2016–2018 — push-start Limited/Sport/Eco trims (early TL) | TQ8-FOB-4F07 | 95440-D3100 | Philips ID47 (HITAG3 / PCF7953) | 433.92 MHz | CR2032 | HY22 |
| 433.92 MHz · TQ8-FOB-4F11 | 2018–2021 — push-start Limited/Sport/Ultimate trims (late TL) | TQ8-FOB-4F11 | 95440-D3510 | Philips ID47 (HITAG3 / PCF7953) | 433.92 MHz | CR2032 | HY22 (emergency insert, EKB-HY-1499-A) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: not available — Hyundai/Kia/Genesis HITAG3 (ID47/PCF7938X) smart key requires professional OBD IMMO tool. No ignition-cycle self-programming exists.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Tucson TL, 2016-2021) spans the PCF7952 ID46 → HITAG-AES chip transition — pre-facelift (2016-2018) typically PCF7952 ID46, facelift (2019-2021) typically HITAG-AES smart key. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- All existing smart key registrations will be permanently erased. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY20R (CCW).
68 verified sources · Last verified: 2026-08-09
