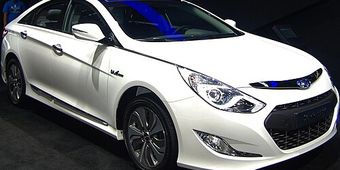

Hyundai Sonata 6th (YF) (2011–2014) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY15
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

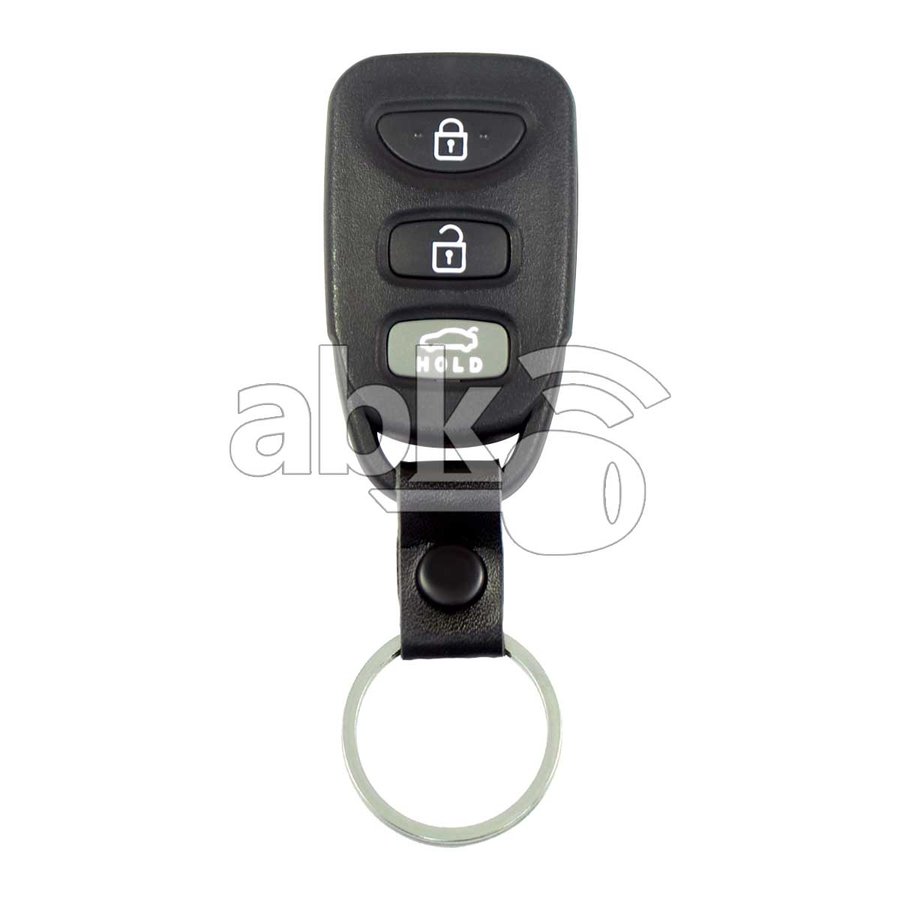

| 313.85 MHz · OSLOKA-950T | 2011–2014 NA — standard trims (turn-key ignition, non-push-start) | OSLOKA-950T | 95430-3Q000 | none | 313.85 MHz (listed 314/315 MHz nominal) | CR2032 | n/a |
| 315 MHz · SY5HMFNA04 | 2011–2014 NA — Limited/Sport/Hybrid push-button-start trims | SY5HMFNA04 | 95440-3Q000 | Philips PCF7952A / ID46 (HITAG-2 crypto) | 315 MHz | CR2032 | HY20 (KK10 — vestigial emergency insert, sold separately) |
| 433 MHz · SVI-CMFEUO3 | 2010–2014 — Korea (Sonata), China (Beijing Hyundai), Australia/NZ/Singapore (i45) | n/a | 95440-3S1004X | Philips PCF7952A / ID46 (HITAG-2 crypto) | 433 MHz | CR2032 | HY18 / HY22 emergency insert (export keyway) |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Sonata YF, 2011-2014) spans the 4D60 → PCF7936 ID46 chip transition — 2011-2012 typically 4D60, 2013-2014 typically PCF7936 ID46. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY15 (CW).
50 verified sources · Last verified: 2026-08-06
