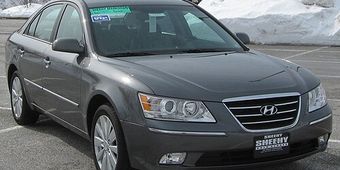

Hyundai Sonata 5th (NF) (2006–2010) — Key Programming Reference
- Difficulty
- medium
- Lishi / lockout
- HY15
Key fobs & transponder keys (3 variants)
| Key | Years | FCC ID | P/N | Chip | Freq | Battery | Blade |
|---|---|---|---|---|---|---|---|

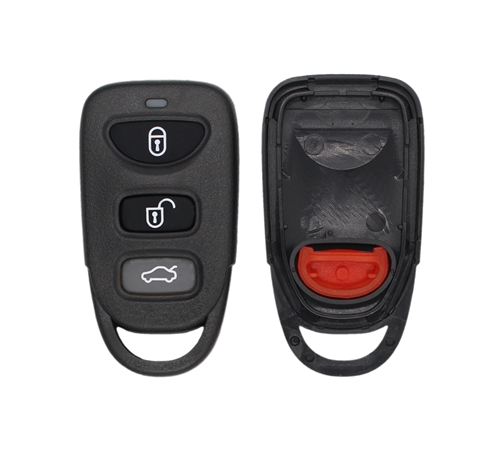

| 314 MHz · OSLOKA-310T | 2006–2010 NA all trims | OSLOKA-310T | 95430-3K202 | none | 315 MHz | CR2032 | n/a |
| transponder · 81996-3K000 | 2006–2010 NA all trims | n/a | 81996-3K000 | Philips ID46 (PCF7936) | n/a | n/a | HYN14R (Silca HYN14RT14 / Ilco HY15-P / JMA HY-11DP1 / Keyline HY14SP / Jet HY15) |
| 433 MHz · OKA-311T | 2006–2010 EU / Korea (Avante) / ME export | OKA-311T | 95430-3K100 | none | 433 MHz | CR2032 | n/a |
Programming procedures
What the job needs
- Add a key: 1 existing working key required.
- All keys lost: no existing working key needed.
- PIN / security code: required — NASTF/dealer/k518 built-in.
- Online / server access: not required (offline programming).
- On-board (no tool) sequence: possible for this case.
- On site: engine off · Maintain 12V+ · Clear IMMO DTCs.
- Bring: Photo ID + vehicle registration.
Tool coverage
Documented for this case on: Autel IM608 Pro II · Autel IM508S · Autel KM100 · Xhorse Key Tool Plus · Xhorse Key Tool Max Pro · Lonsdor K518 Pro / K519 · OBDSTAR X300 DP Plus · AutoProPad G2/G3 · Advanced Diagnostics Smart Pro · Launch X431 IMMO Elite / IMMO Plus. Step-by-step menu paths for each tool are in the app.
Notes & cautions
- This chassis (Hyundai Sonata NF 5th gen, 2006-2010) spans the Texas 4D60 → PCF7936 ID46 chip transition — 2006-2008 typically 4D60, 2009-2010 typically PCF7936 ID46. Verify chip before ordering blanks. IMMO key registration ALWAYS erases ALL previously registered keys.
- All existing keys will be erased and cannot be recovered. Bring ALL replacement key blanks before starting — minimum 2.
- Keep ALL lost/existing key fobs at least 10 metres from vehicle during programming.
Lockout
Door pick / decode: Lishi HY15 (CW).
41 verified sources · Last verified: 2026-08-10
